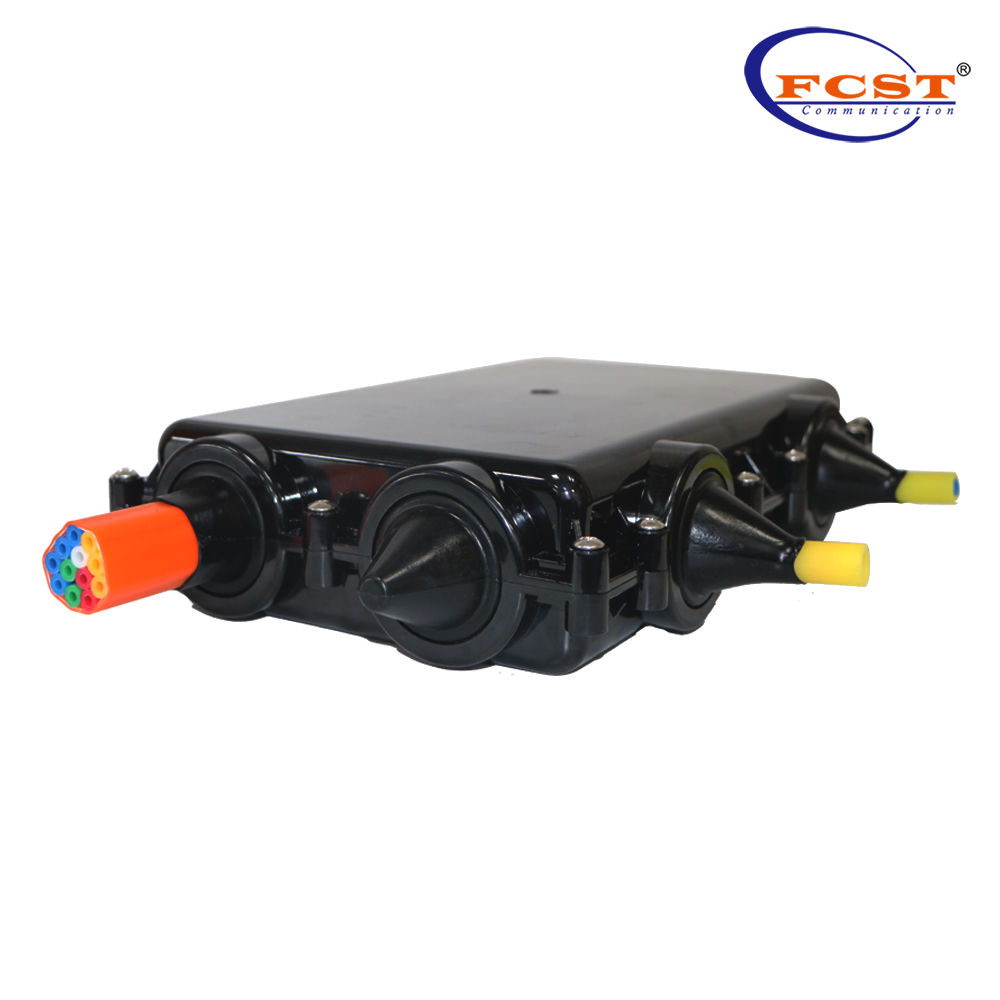

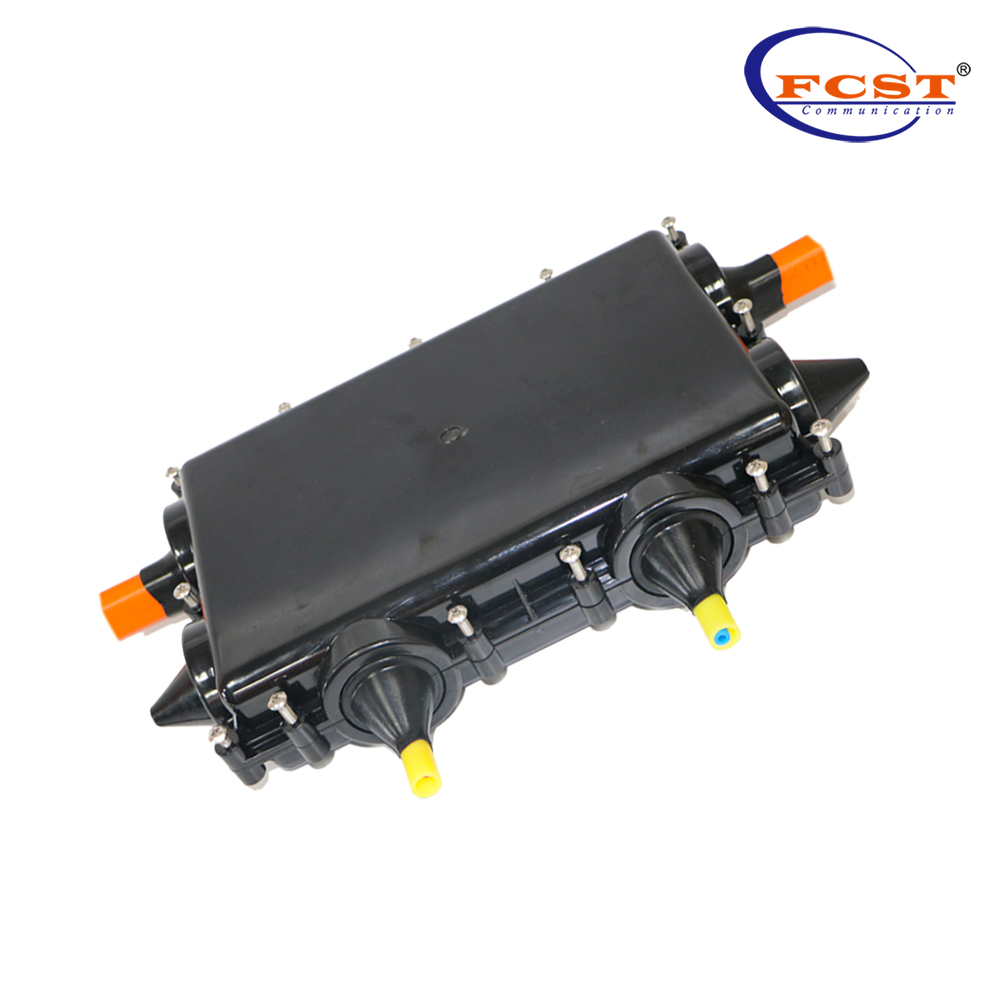

FCST16301 FTTH Micro Tube Distribution Closure

  • Can be re-entered.
  • Max. 43.5mm for duct.
  • IP65 rated. (equivalent to NEMA 6)
  • Manifold option allows 6 x 1DB to be.

  • FCST16301

  • FCST

Availability:
Inquire Add to Basket

FCST16301 FTTH Micro Tube Distribution Closure

Product Overview

FCST16301 Tube Distribution Closure can be Direct Buried into a waiting trench (following FCST installation procedures on back-fill) or placed inside a manhole or handhole.

Product Advantages

lCan be re-entered.

lMax. 43.5mm for duct.

lIP65 rated. (equivalent to NEMA 6)

lManifold option allows 6 x 1DB to be.

lOne piece grommet and seal arrangement.

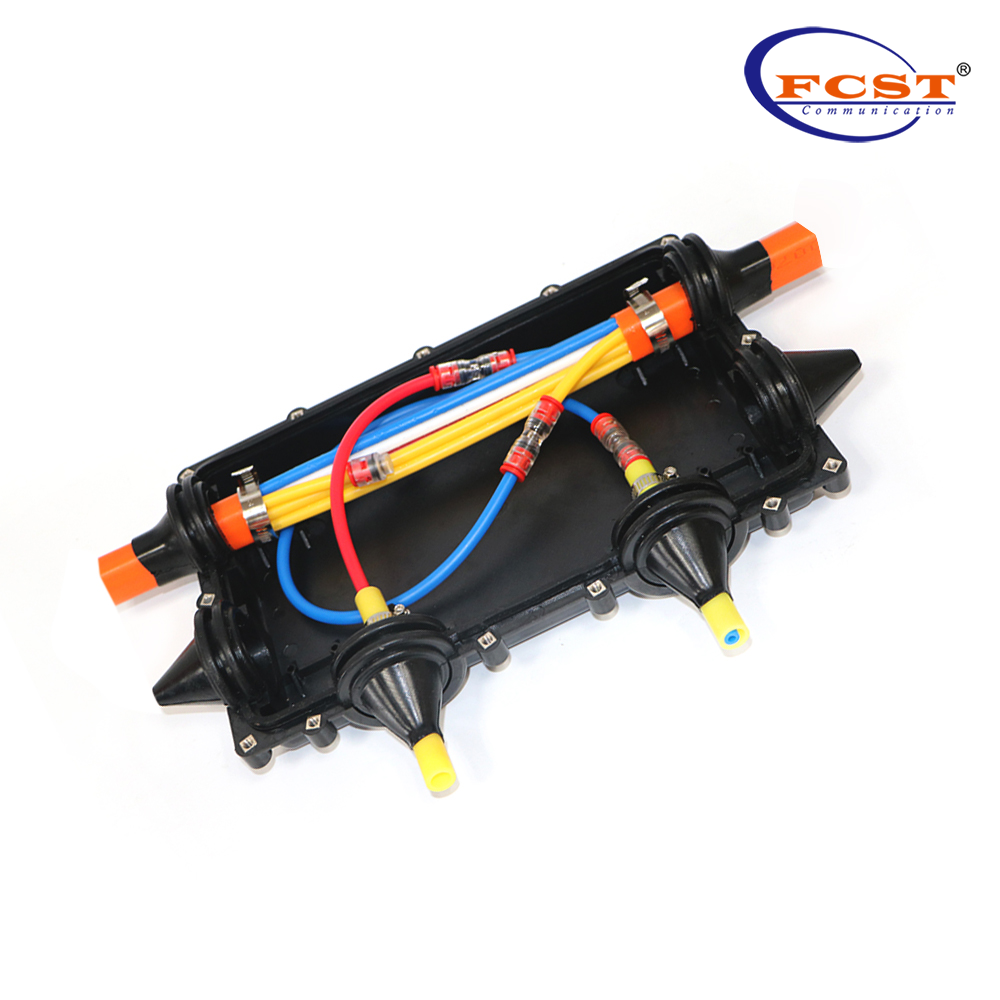

lStraight through, H and Y configurations possible.

lCan be retro-fitted to existing tube bundles/sub ducts.

lCaptivated screws in lid portion allowing inverted installation.




Product Specifications

Construction

Description

Material

ABS

Dimension (mm)

385*250*72

Inlets、Outlets

6

Net Weight(g)

1200

Diameter

Tube Bundle:Max.43.5mm



Application

FCST16301 Tube Distribution Closure can be Direct Buried into a waiting trench (following FCST

installation procedures on back-fill) or placed inside a manhole or handhole.

Technical Specification

lImpact: 1Kg (2.2lb) weight dropped from 1m (3.3feet)

lWater Resistance:Tested to IP65 (equivalent to NEMA 6)

lPull Out:Drop Port:>940N (>211 lbf)

lDiamension: 38.5cm*25cm*7.2cm (including the seal rubber)

             31.5cm*21.5cm*7.2cm (not including the seal rubber)


download FCST16301 FTTH Micro Tube Distribution Closure.pdf
