Product Overview

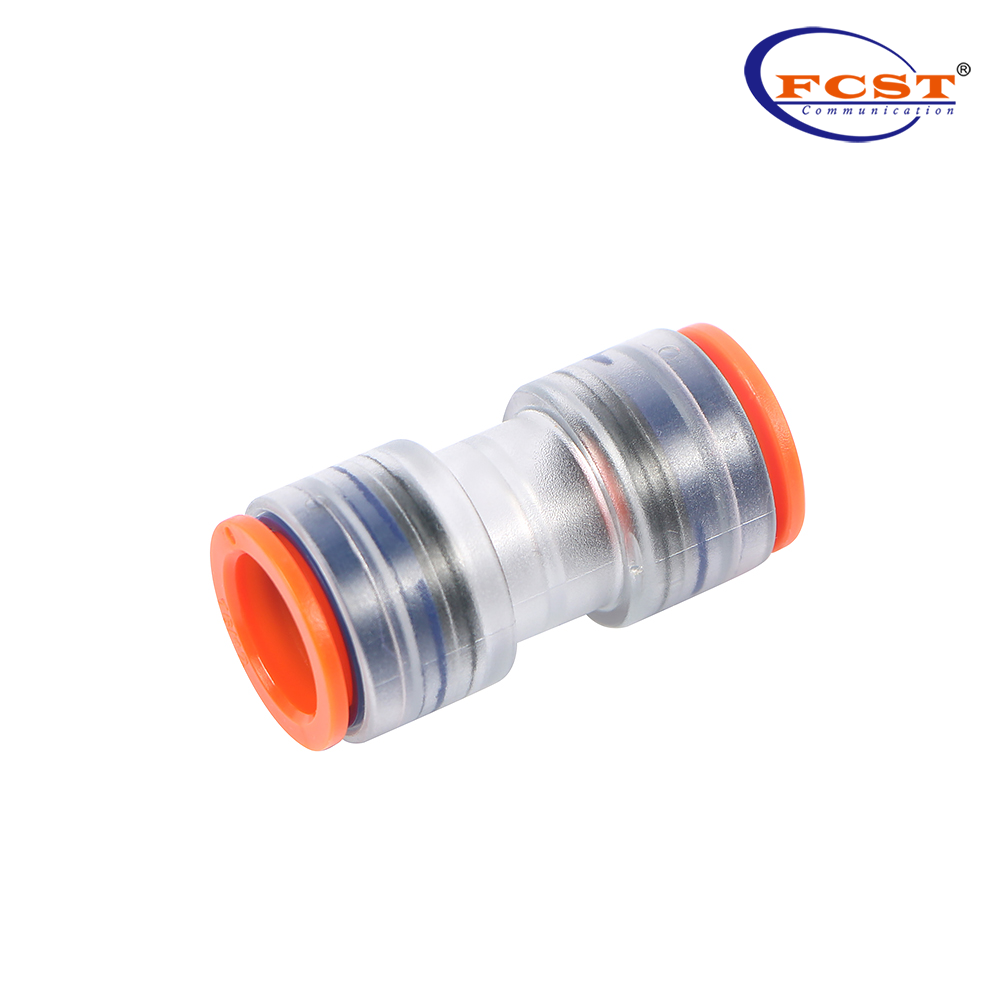

The Micro Duct connector were developed to connect microducts with each other. Our system enables an easy, fast connection and disconnection of the microduct. Telecom duct connectors’ robust construction resistance to high pressure forces, allowing them to be used in direct buried (DB) applications. Microduct connector transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
lFor 3-25 mm Microducts.
lEasy “push-in” installation.
lCrystal clear transparent body.
l95% of the material is made of non-metal.
lLocking rings to prevent accidental removal of connector.
Ordering Information
Model | D1 | D2 | A1 | A2 | B | L | Weight(g) |
ERPU3/2.1 | 3 | 3 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
ERPU4/2.5 | 4 | 4 | 11±0.2 | 11±0.2 | 2.1±0.12 | 30.7±0.5 | - |
ERPU5/3.5 | 5 | 5 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU6/3.5 | 6 | 6 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU7/3.5 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 3.5±0.12 | 41.2±0.5 | 5.2±0.1 |
ERPU7/5.5 | 7 | 7 | 15.2±0.2 | 15.2±0.2 | 5.5±0.12 | 41.2±0.5 | 5.4±0.1 |
ERPU8/6 | 8 | 8 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
ERPU8.5/6 | 8.5 | 8.5 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 4.7±0.1 |
ERPU10/8 | 10 | 10 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
ERPU12/10 | 12 | 12 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
ERPU14/11 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 11±0.12 | 52.2±0.5 | 12.95±0.1 |
ERPU14/12 | 14 | 14 | 23.5±0.2 | 23.5±0.2 | 12±0.12 | 52.2±0.5 | 12.85±0.1 |
ERPU15/12 | 15 | 15 | 25.3±0.2 | 25.3±0.2 | 12±0.12 | 52.2±0.5 | 14.6±0.2 |
ERPU16/14 | 16 | 16 | 25.3±0.2 | 25.3±0.2 | 14±0.12 | 52.2±0.5 | 14.5±0.2 |
ERPU18/15 | 18 | 18 | 32.7±0.3 | 32.7±0.3 | 15±0.12 | 55.9±0.5 | 29.8±0.2 |
ERPU20/17 | 20 | 20 | 32.7±0.3 | 32.7±0.3 | 17±0.12 | 55.9±0.5 | 27.8±0.2 |
ERPU22/16 | 20 | 20 | 40±0.3 | 40±0.3 | 16±0.12 | 71±0.5 | 47.7±0.2 |
ERPU25/22 | 25 | 25 | 40±0.3 | 40±0.3 | 22±0.12 | 71±0.5 | 47.7±0.2 |
ERPU1/8(2.1) | 1/8 | 1/8 | - | - | 2.1±0.12 | - | - |
ERPU3/16(3.5) | 3/16 | 3/16 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU1/4(3.5) | 1/4 | 1/4 | 13.5±0.2 | 13.5±0.2 | 3.5±0.12 | 35.8±0.5 | 3.6±0.1 |
ERPU5/16(6) | 5/16 | 5/16 | 15.2±0.2 | 15.2±0.2 | 6±0.12 | 41.2±0.5 | 5.4±0.1 |
ERPU3/8(8) | 3/8 | 3/8 | 17.5±0.2 | 17.5±0.2 | 8±0.12 | 45.2±0.5 | 6.7±0.1 |
ERPU1/2(10) | 1/2 | 1/2 | 21.5±0.2 | 21.5±0.2 | 10±0.12 | 52.2±0.5 | 11.8±0.1 |
