Product Advantages
l Heading, laying down and connecting the HDPE Silicon Duct can be performed under ambient temperatures of -20°C to +50°C.
l If temperature drops below -20°C, the HDPE duct get brittle so that their breaking can occur if they are stressed, above all by impacts. Neither damage nor deterioration of the mechanical properties of the HDPE duct occurs during storage of the pipe without handing under lower temperatures usual in our climatic conditions (up to -30°C).
l Minimum bending radius for pipe’s dimensions must not be exceeded. This is 20 times value of their outer diameter.
Product Advantages
l Heading, laying down and connecting the HDPE Silicon Duct can be performed under ambient temperatures of -20°C to +50°C.
l If temperature drops below -20°C, the HDPE duct get brittle so that their breaking can occur if they are stressed, above all by impacts. Neither damage nor deterioration of the mechanical properties of the HDPE duct occurs during storage of the pipe without handing under lower temperatures usual in our climatic conditions (up to -30°C).
l Minimum bending radius for pipe’s dimensions must not be exceeded. This is 20 times value of their outer diameter.
Product Specifications
Duct | Outer Diameter | Inner Diameter | Wall Thickness | Ovality | ||
Min(mm) | Max(mm) | Min(mm) | Min(mm) | Max(mm) | ||

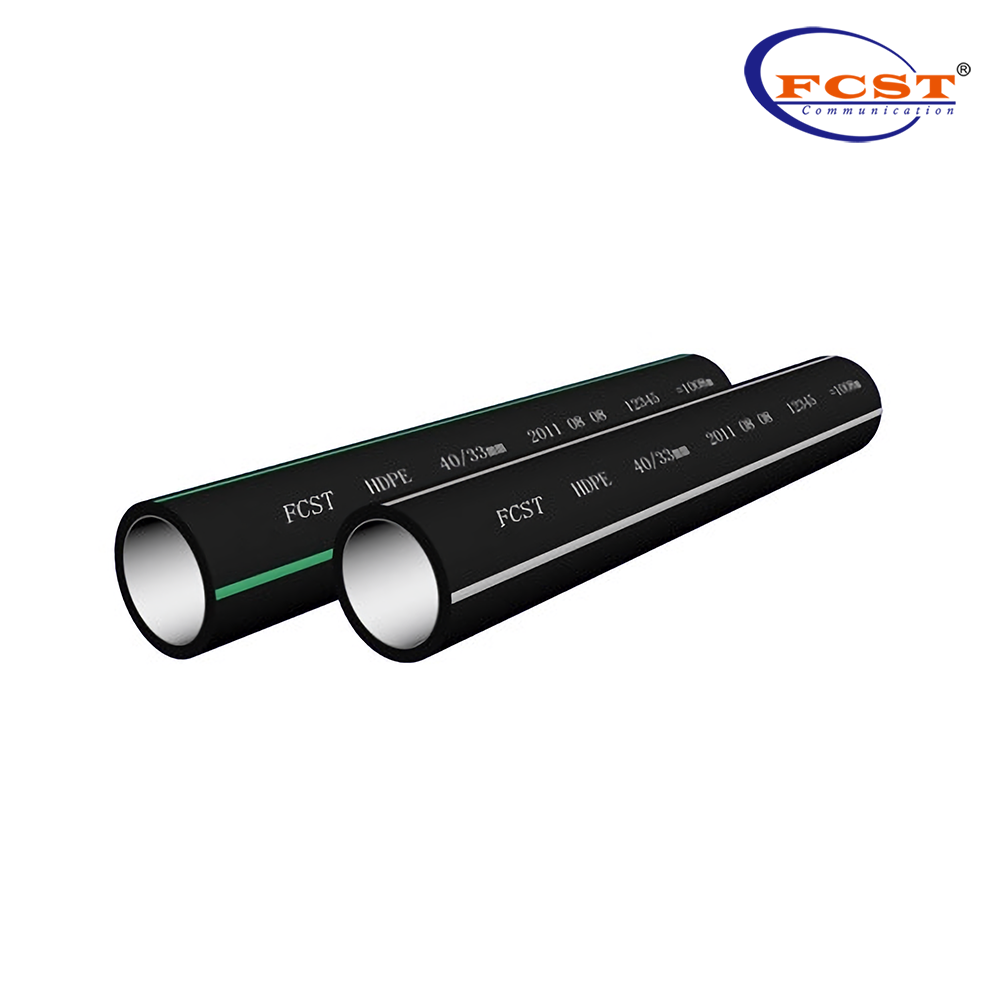

40/33mm | 40.0 | 40.4 | 32.9 | 3.3 | 3.7 | ≤ 5% after coiled |
Item | Performance | |||||
1 | Appearance | Smooth inner & outer wall without visible impurity, well-proportioned color, no bubble or crack | ||||
2 | Stiffness of Outer Wall | ≥ 59 (Shore-D) | ||||
3 | Tensile Strength at yield | ≥ 21 MPa | ||||
4 | Elongation at break | ≥ 380 % | ||||
5 | Maximal Pulling Load | ≥ 8000 N | ||||
6 | Friction Coefficient of Inner Wall | ≤ 0.15 | ||||
7 | Flatting test | Unload immediately after being vertically pressed till 50% distortion of original outer diameter, the sample is no crack. | ||||
8 | Compression resistance performance | Unload immediately after being vertically pressed till 5% distortion of original outer diameter, the sample is no crack. Max load should be more than 600N. | ||||
9 | Drop hammer impact resistance performance | In the temperature of -19℃ for 2 hours, the height is 2m, using 15.3kgs hammer to impact 10 samples, more than 9 samples are no crack. | ||||
10 | Heat reversion | ≤ 3% | ||||
Product Specifications
Duct | Outer Diameter | Inner Diameter | Wall Thickness | Ovality | ||
Min(mm) | Max(mm) | Min(mm) | Min(mm) | Max(mm) | ||
40/33mm | 40.0 | 40.4 | 32.9 | 3.3 | 3.7 | ≤ 5% after coiled |
Item | Performance | |||||
1 | Appearance | Smooth inner & outer wall without visible impurity, well-proportioned color, no bubble or crack | ||||
2 | Stiffness of Outer Wall | ≥ 59 (Shore-D) | ||||
3 | Tensile Strength at yield | ≥ 21 MPa | ||||
4 | Elongation at break | ≥ 380 % | ||||
5 | Maximal Pulling Load | ≥ 8000 N | ||||
6 | Friction Coefficient of Inner Wall | ≤ 0.15 | ||||
7 | Flatting test | Unload immediately after being vertically pressed till 50% distortion of original outer diameter, the sample is no crack. | ||||
8 | Compression resistance performance | Unload immediately after being vertically pressed till 5% distortion of original outer diameter, the sample is no crack. Max load should be more than 600N. | ||||
9 | Drop hammer impact resistance performance | In the temperature of -19℃ for 2 hours, the height is 2m, using 15.3kgs hammer to impact 10 samples, more than 9 samples are no crack. | ||||
10 | Heat reversion | ≤ 3% | ||||
Product Structure
Product Structure
Packing Information
l Standard length of the coil is 2000m (2KM).
l The HDPE Silicon Duct shall be coiled to the removable steel pan directly. The outer silicon duct shall be covered with light-tight plastic film.
l Both ends of the HDPE Silicon Duct shall be sealed with the plastic cap to prevent the entry of moisture during shipping, handling and storage.
Packing Information
l Standard length of the coil is 2000m (2KM).
l The HDPE Silicon Duct shall be coiled to the removable steel pan directly. The outer silicon duct shall be covered with light-tight plastic film.
l Both ends of the HDPE Silicon Duct shall be sealed with the plastic cap to prevent the entry of moisture during shipping, handling and storage.
