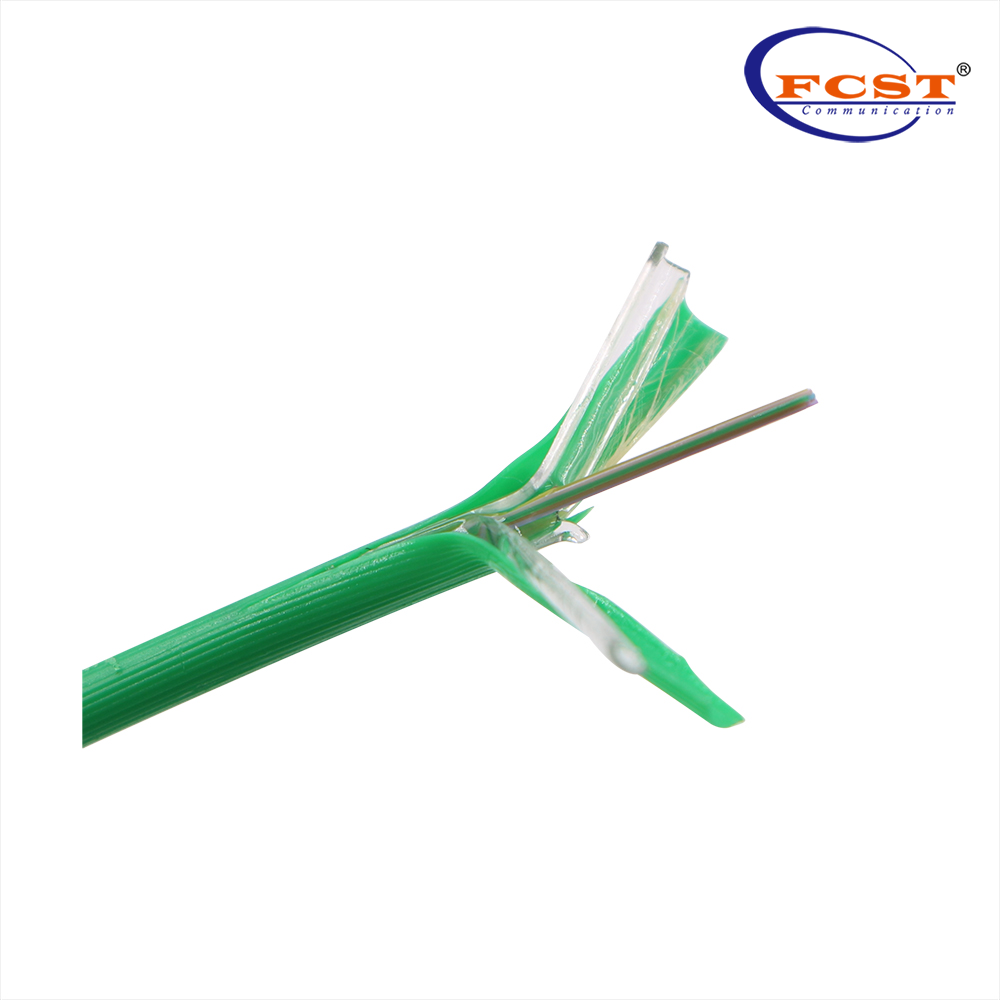

Super Mini Uni-tube Blown Cable

  • Structure Innovation in sheath, enhancing the blowing performance.
  • Particular technique control, prevent sheath form crinkling during installation.
  • Accurate fibre length balance, stable mechanical and temperature performance.
Availability:
Super Mini Uni-tube Blown Cable




Product Advantages

Structure Innovation in sheath, enhancing the blowing performance.

Particular technique control, prevent sheath form crinkling during installation.

Accurate fibre length balance, stable mechanical and temperature performance.

Special complex material loose tube, reduce the shrink of tube in cold temperature.


Product Specifications

Construction

Description

Fibre Count

2/4/6/8/12/24

Outer Diameter(mm)

2.0/2.3/2.5/2.8±0.1

Max. Tensile StrengthN

40/50/60

Cable Service Life

25 years

Attenuation(SM G.652DG.657)

0.35dB/km max @1310nm

0.22dB/km max @1550nm

Fibre Color Code (Fibre colors can also be determined by customer

NO.

1

2

3

4

5

6

7

8

9

10

11

12

Color

Blue

Orange

Green

Brown

Grey

White

Red

Black

Yellow

Violet

Pink

Aqua















Fibre Unit Structure

Super-Mini-Uni-tube-Blown-Cable


Packing

Super Mini (10)
