Product Overview

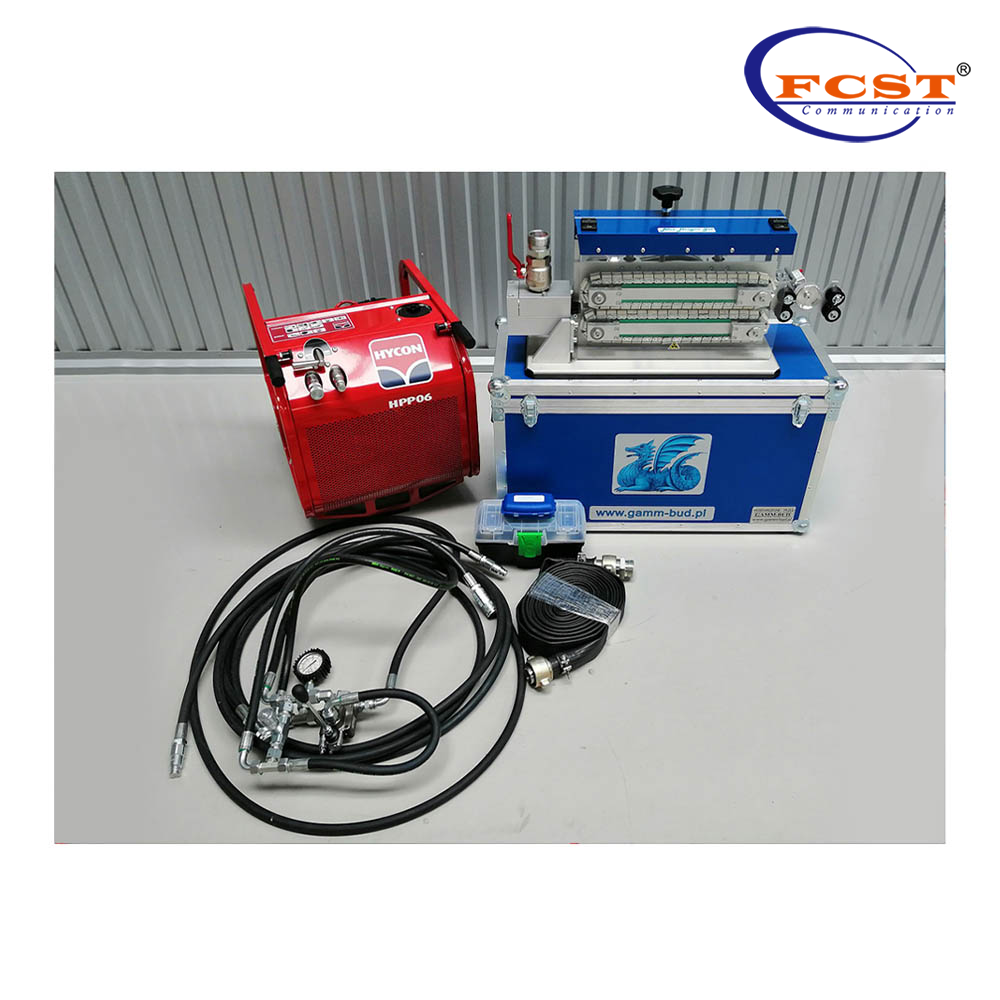

The most powerful unit in FCST product family of cable blowing machines, designed for blowing classic and copper cables. The machine is equipped with hydraulic motors. Recommended for installations requiring larger pushing forces. Hydro Chain has a solid, aluminium construction, equipped with high quality chain feeder and powerful hydraulic motors. We supply Hydro Chain together with hydraulic unit (aggregate) and the connection hoses.
FCST-FBM07 accessories set includes seals and bushings for every diameter of cable within machine's range (6.0-20 mm), as well as seals and bushings for HDPE ducts (32,40,50 mm)
Product Overview
The most powerful unit in FCST product family of cable blowing machines, designed for blowing classic and copper cables. The machine is equipped with hydraulic motors. Recommended for installations requiring larger pushing forces. Hydro Chain has a solid, aluminium construction, equipped with high quality chain feeder and powerful hydraulic motors. We supply Hydro Chain together with hydraulic unit (aggregate) and the connection hoses.
FCST-FBM07 accessories set includes seals and bushings for every diameter of cable within machine's range (6.0-20 mm), as well as seals and bushings for HDPE ducts (32,40,50 mm)
Product Specifications
Construction | Description |
Technical Data | FCST-FBM07 |
Cable Diameter | 6,0 – 20 mm |
Tube Diameter | 32mm, 40mm, 50mm |
Blowing Distance /Max | 2500 m |
Blowing Speed / Max | 80 m/min |
Operating Pressure / Max | 10 bar |
Machines Dimensions /L x W x H/ | 850 x 400 x 300mm /weight approx. 42kg |
Dimensions Of The Transport Box | 920 x 530 x 440mm /weight approx. 55kg |
Available Accessories Inside The Set | Set of handles for HDPE ducts Set of seals for HDPE ducts Set of cable seals Set of Allen keys Socket wrench Air hose Power unit (aggregate) |
Required Compressor’s Efficiency | ducts: 32-40- 50mm 8 – 10 m3/min |
Power Unit (aggregate) | dimensions: 630 x 530 x 510 mm weight: 54kg max hydraulic pressure: 110 bar |
Product Specifications
Construction | Description |
Technical Data | FCST-FBM07 |
Cable Diameter | 6,0 – 20 mm |
Tube Diameter | 32mm, 40mm, 50mm |
Blowing Distance /Max | 2500 m |
Blowing Speed / Max | 80 m/min |
Operating Pressure / Max | 10 bar |
Machines Dimensions /L x W x H/ | 850 x 400 x 300mm /weight approx. 42kg |
Dimensions Of The Transport Box | 920 x 530 x 440mm /weight approx. 55kg |
Available Accessories Inside The Set | Set of handles for HDPE ducts Set of seals for HDPE ducts Set of cable seals Set of Allen keys Socket wrench Air hose Power unit (aggregate) |
Required Compressor’s Efficiency | ducts: 32-40- 50mm 8 – 10 m3/min |
Power Unit (aggregate) | dimensions: 630 x 530 x 510 mm weight: 54kg max hydraulic pressure: 110 bar |
Available Models:FCST-FBM07
