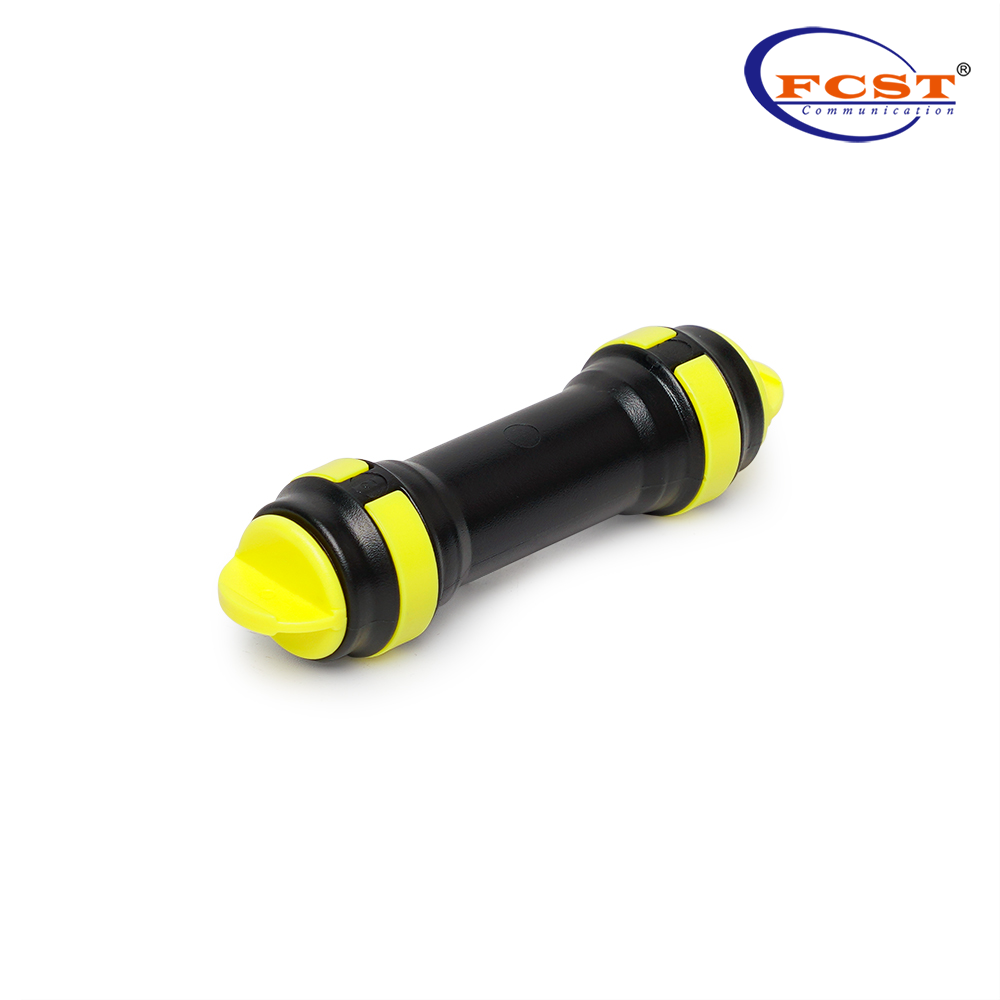

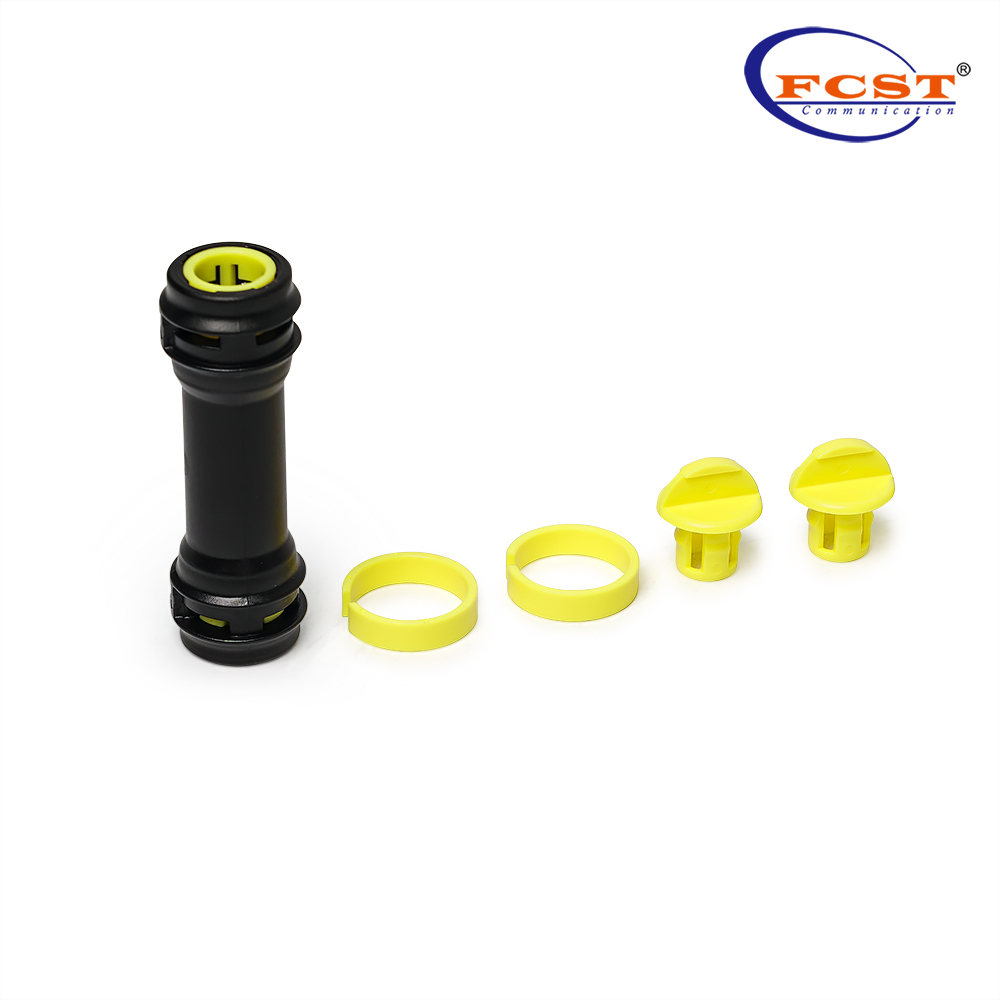

Direct Buried Straight Connector

  • Standard EN50411-2-8.
  • High pressure resistance>25bar.
  • High temperature resistance -40~65℃.
  • Designed to connect thick-walled microducts in a direct buried environments.
Availability:
Direct Buried Straight Connector (1)

Product Overview

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications.

Product Advantages

Standard EN50411-2-8.

High pressure resistance>25bar.

High temperature resistance -40~65℃.

Designed to connect thick-walled microducts in a direct buried environments.

Permanent connection that cannot be unlocked after installation Easy to use,robust,and high mechanical resistance.



Product Specifications

Construction

Description

Tube To Connector

Polyethylene HDPE

Fluid

Air with blowing system

Working Pressure

20 bar

MAX. Pressure

25 bar

Userful Life

25 years

Working Temperature

-40/+65

According To Standards

EN50411-2-8

Tube Assembly

No tooling required

Outdoor Exposure Limit @Cetral Europe

12 months

Product Size

NO.

Duct OD(mm)

PCS/bag

FDS-B7/3.5

7/3.5

10

FDS-B8/3.5

8/3.5

10

FDS-B10/6

10/6

10

FDS-B12/8

12/8

10

FDS-B14/10

14/10

10
