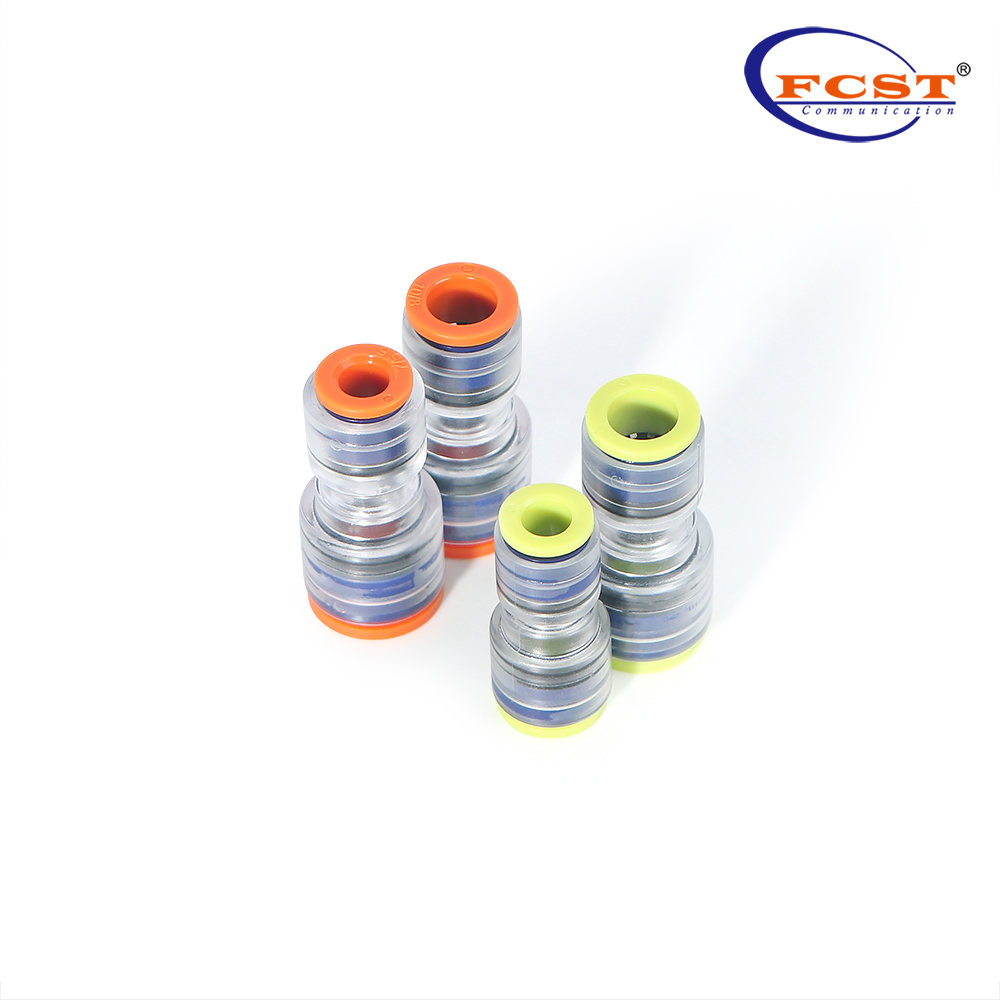

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
l No metal parts.
l Easy “push-in” installation.
l Crystal clear transparent body.
l Rugged design for direct buried and above ground use.
l Locking rings to prevent accidental removal of connector.
<template class="visibility">
Product Overview
These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
l No metal parts.
l Easy “push-in” installation.
l Crystal clear transparent body.
l Rugged design for direct buried and above ground use.
l Locking rings to prevent accidental removal of connector.
</template>
Product Specifications
Construction
Description
Tube To Connector
Polyethylene HDPE
Fluid
Air with blowing system
Working Pressure
20 bar
MAX. Pressure
28 bar
Userful Life
25 years
Tube Assembly
No tooling required
Water Ingress Test
0.5 bar during 168 hours
Working Temperature
-45℃/+50℃
Transport And Storage Temperature
-10℃/+50℃
Installation Temperature
-10℃/+50℃
Recommended Blowing Temperature
-15℃/+35℃
Outdoor Exposure Limit @Cetral Europe
12 months
Protection Class
IP68
High Pressure Resistance(safety)
>50bar
According To Standards
CEI EN 50411-2-8,EN 50411-2-5
Related Documents
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003
Related Documents
ISO 3601,ISO 4397:1993(2000),ISO4399:1995
<template class="visibility">
Product Specifications
Construction
Description
Tube To Connector
Polyethylene HDPE
Fluid
Air with blowing system
Working Pressure
20 bar
MAX. Pressure
28 bar
Userful Life
25 years
Tube Assembly
No tooling required
Water Ingress Test
0.5 bar during 168 hours
Working Temperature
-45℃/+50℃
Transport And Storage Temperature
-10℃/+50℃
Installation Temperature
-10℃/+50℃
Recommended Blowing Temperature
-15℃/+35℃
Outdoor Exposure Limit @Cetral Europe
12 months
Protection Class
IP68
High Pressure Resistance(safety)
>50bar
According To Standards
CEI EN 50411-2-8,EN 50411-2-5
Related Documents
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003
Related Documents
ISO 3601,ISO 4397:1993(2000),ISO4399:1995
</template>
Product Structure
Product Advantages
The connector shell is made of PC material, which can prevent corrosion when installed underground. Transparent shell, you can clearly see the connection effect.
IP68 waterproof rating, the maximum pressure is up to 28bar. Solve the trouble of air leakage during the air blowing process.
Matching and install the lock clip to prevent falling off due to high pressure gas during the blowing process. Ergonomic design, easy installation and disassembly operation.
<template class="visibility">
Product Structure
Product Advantages
The connector shell is made of PC material, which can prevent corrosion when installed underground. Transparent shell, you can clearly see the connection effect.
IP68 waterproof rating, the maximum pressure is up to 28bar. Solve the trouble of air leakage during the air blowing process.
Matching and install the lock clip to prevent falling off due to high pressure gas during the blowing process. Ergonomic design, easy installation and disassembly operation.
