Product Overview

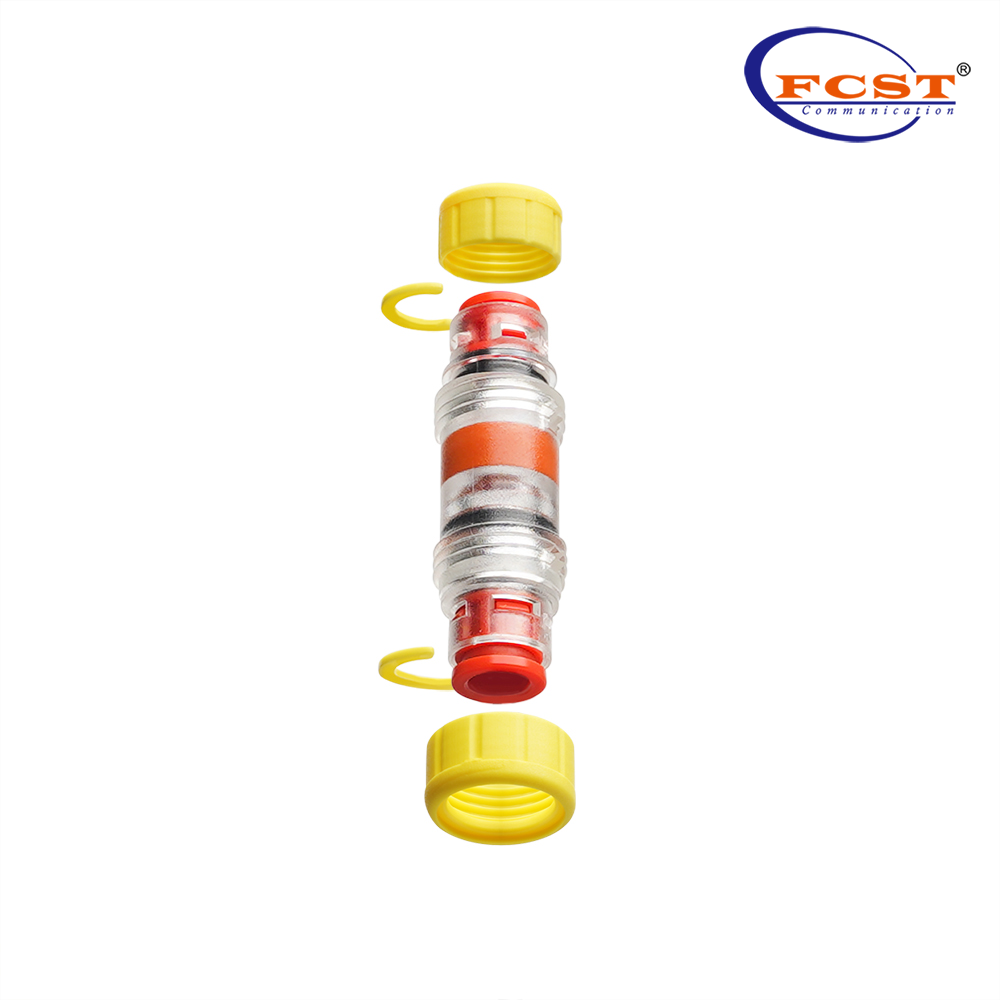

This Gas-Water Block Micro Duct Reducer is used to prevent the liquid flowing between the connected micro ducts at transformation point. Thus, avoid fluid(gas) entering the micro ducts, and damage the equipment.
Product Advantages
lEasy “push-in” installation.
lCrystal clear transparent body.
l95% of the material is made of non-metal.
lTested in accordance to EN 50411-2-8:2009.
Product Specification
Construction | Description |
Tube To Connector | Polyethylene HDPE |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
MAX. Pressure | 28 bar |
Userful Life | 25 years |
Tube Assembly | No tooling required |
Water Ingress Test | 0.5 bar during 168 hours |
Working Temperature | -45℃/+50℃ |
Transport And Storage Temperature | -10℃/+50℃ |
Installation Temperature | -10℃/+50℃ |
Recommended Blowing Temperature | -15℃/+35℃ |
Outdoor Exposure Limit @Cetral Europe | 12 months |
Protection Class | IP68 |
High Pressure Resistance(safety) | >50bar |
According To Standards | CEI EN 50411-2-8,EN 50411-2-5 |
Related Documents | EN61300,EN61753-1,EN60068-2-10, |
Related Documents | ISO 3601,ISO 4397:1993(2000), |
Ordering Information
Packing Information
