FCST16311 (7ways)
FCST
Availability: | |
---|---|
Product Overview

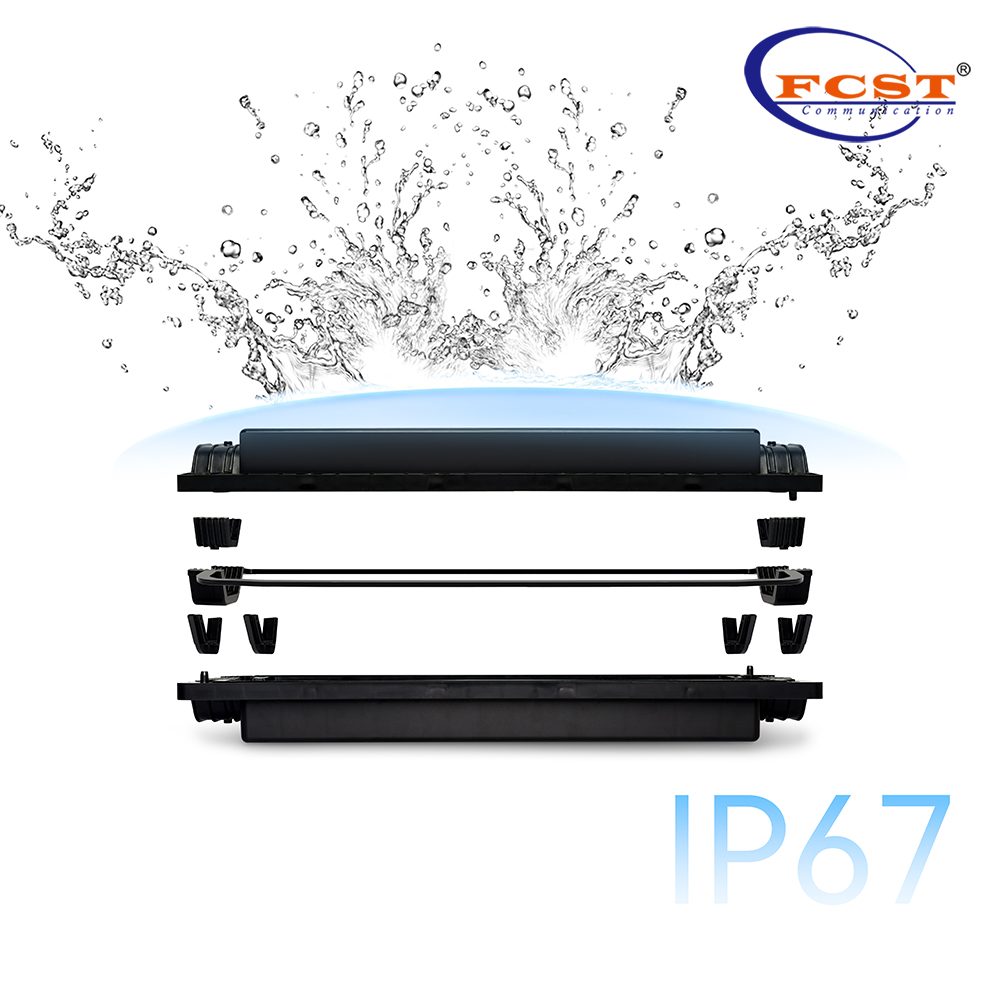

FCST16311 Y-Type Tube Distribution Closure,an in-line enclosure used for the blown fibre joint applications. can be Direct Buried into a waiting trench (following FCST installation procedures on back-fill) or placed inside a manhole or handhole.
Product Advantages
lProtection Level:IP67.
lProven gel sealing system.
lNo pressure relief valve required.
lRobust construction with high mechanical strength.
lEasy handling at all temperatures,Tool-less installation or re-entry.
lSealing rings can be customized according to the size of microduct.
lCable configuration changes possible with a minimum of extra accessories.
Product Overview
FCST16311 Y-Type Tube Distribution Closure,an in-line enclosure used for the blown fibre joint applications. can be Direct Buried into a waiting trench (following FCST installation procedures on back-fill) or placed inside a manhole or handhole.
Product Advantages
lProtection Level:IP67.
lProven gel sealing system.
lNo pressure relief valve required.
lRobust construction with high mechanical strength.
lEasy handling at all temperatures,Tool-less installation or re-entry.
lSealing rings can be customized according to the size of microduct.
lCable configuration changes possible with a minimum of extra accessories.
Product Specifications
Construction | Description |
Micro Duct Diameters | Duct Width:≤62 Duct Height:≤47.5 |
Material | ABS |
Dimension (mm) | 570*180*110 |
Net Weight(g) | 2220 |
Protection Levely | IP67 |
Port Supports | 1 in 2 out |
Temperature Range | -40°C to +60°C |
Product Specifications
Construction | Description |
Micro Duct Diameters | Duct Width:≤62 Duct Height:≤47.5 |
Material | ABS |
Dimension (mm) | 570*180*110 |
Net Weight(g) | 2220 |
Protection Levely | IP67 |
Port Supports | 1 in 2 out |
Temperature Range | -40°C to +60°C |
