Durable Telecom Manhole Chamber for ODN Infrastructure Communications Industry

  • Chamber box can be easy installation.
  • Height adjustable.
  • Strong bearing capacity.
  • Strong corrosion resistance.
  • FCST-TH-SMC02

  • FCST

Availability:
FCST-TH-SMC02

Product Overview

Application of SMC Telecom Manhole Chamber in ODN

ODN architecture (Optical Distribution Network), optical distribution network is an FTTH optical cable network based on PON equipment. Its role is to provide an optical transmission channel between the OLT and the ONU.

Product Advantages

lEasy installation.

lFiber optic manhole height adjustable.

lStrong bearing capacity.

lStrong corrosion resistance.



Product Specifications

All products comply with EN124:1994 standards.

Chemical Resistance Performance

Chemicals

Concentrated Sulfuric Acid

Sodium Hydroxide

Sodium Chloride

Test Conditions

Soaked in the specified solution for 48h

Test results

No obvious corrosion on the surface, qualityloss <1%

Mechanical Performance

Items

Standard No.

Requirements

Test Results

Tensile Strength

GB/T1447-2005

100MPa

105MPa

Tensile Modulus

GB/T1447-2005

10GPa

11.8GPa

Bending Strength

GB/T1449-2005

200MPa

213MPa

Flexural Modulus

GB/T1449-2005

10GPa

11.3GPa

Impact Toughness

GB/T1451-2005

80KJ/

90.8KJ/

Barr's Hardness

GB/T3854-2005

50

56

Chamber Load

 Chamber Type

FCST-TH-SMC01

FCST-TH-SMC02

FCST-TH-SMC03

Axial Test Load

100KN

100KN

100KN

Lateral Test Load

40KN

40KN

40KN

Thermal Performance

 Items

Standard No.

Test Results

Heat Distortion Temperature

GB/T1634.2-2004

> 200

Bending Strength

GB/T9979- 2005(-40°C)

265MPa

Flexural modulus

GB/T9979- 2005(-40°C)

1.43x10^(4)MPa

Bending strength retention rate

GB/T9979- 2005(-40°C)

124%

Flexural modulus retention rate

GB/T9979- 2005(-40°C)

11.16%

Linear expansion coefficient

B/T2572-205(26~100)

1.66x10^(-5)

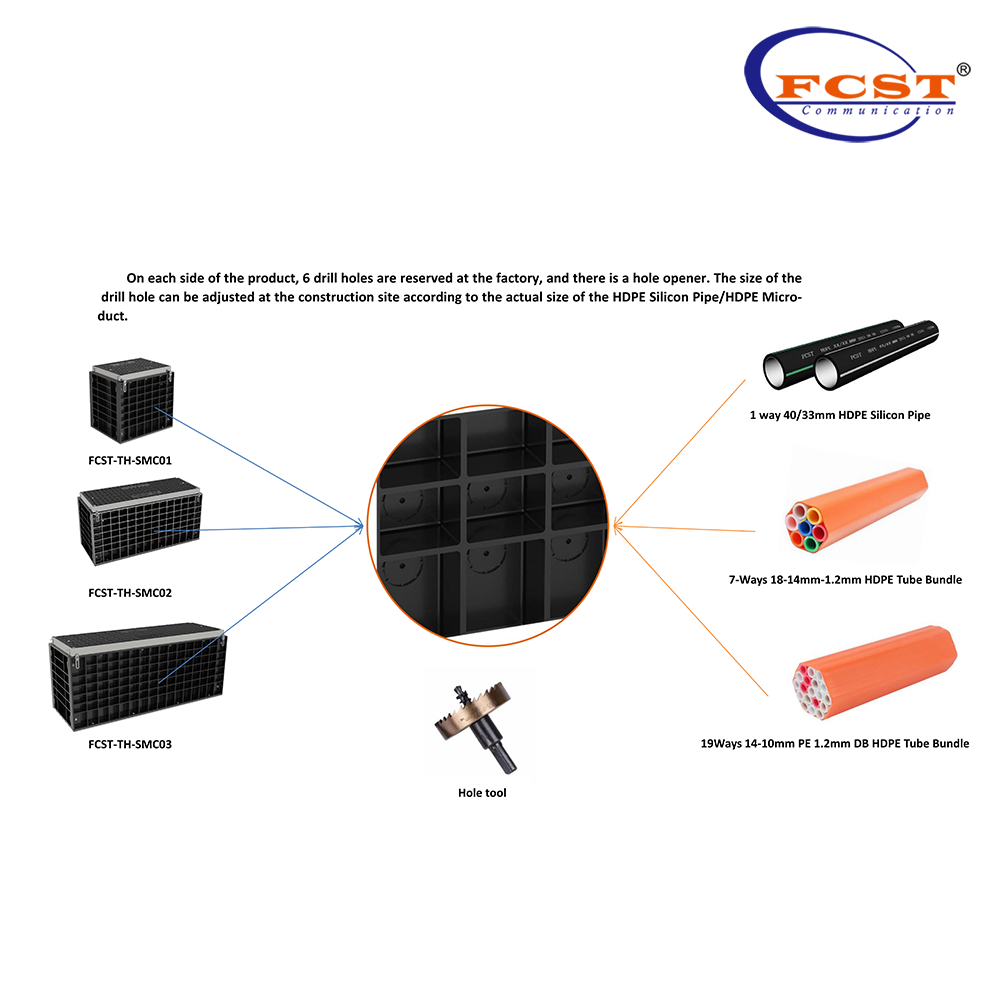

Product Structure

FCST-TH-SMC SMC Telecom Manhole Chamber Assembly Video (4)

Product Size

FCST-TH-SMC通用图片 (1)

Enclosure Model

Enclosure Size

Manhole Cover

Size

Maximum Error

Manhole Cover Load Grade

L

I

W

w

H

h

C

D

E

A

B

FCST-TH-SMC01

540

660

400

520

583

682

387.5

71.5

Φ45

600

460

±3

B125(12.5T)

applies to sidewalk, bicyclelane,small car parks and

underground parking.

FCST-TH-SMC02

1180

1300

1240

C250(25T)

applies to residentialquarters, streets, areas with

slow moving traffic.

FCST-TH-SMC03

1140

1520

1460

D400(40T)

applies to heavy duty plantareas, carriageways and

industrial service roads.

Packing And Transportation

Packing description

Due to the structural characteristics of the product, the factory packaging can be selected according to the actual needs of customers,transportation distances, and transportation routes.

Disassembly and transportation

The structure of the product is simple and easy to disassemble, and all the components can be split into discrete parts, which are stacked and bundled flat. It occupies small space, low transportation cost, ,disassembly and bundling are more conducive to product stability, it is convenient to transport and goods damage is small.

FCST-TH-SMC SMC Telecom Manhole Chamber (1)

Finished product transportation

After assembly, the main components are placed in the pallet, and then bundled and tightly packed. Save assembly time and improve transportation quality. According to different product types, it can generally carry 12 or 6 groups of products for efficient transportation.

FCST-TH-SMC SMC Telecom Manhole Chamber (2)
