FCST-FBM08
Availability: | |
---|---|
Product Overview

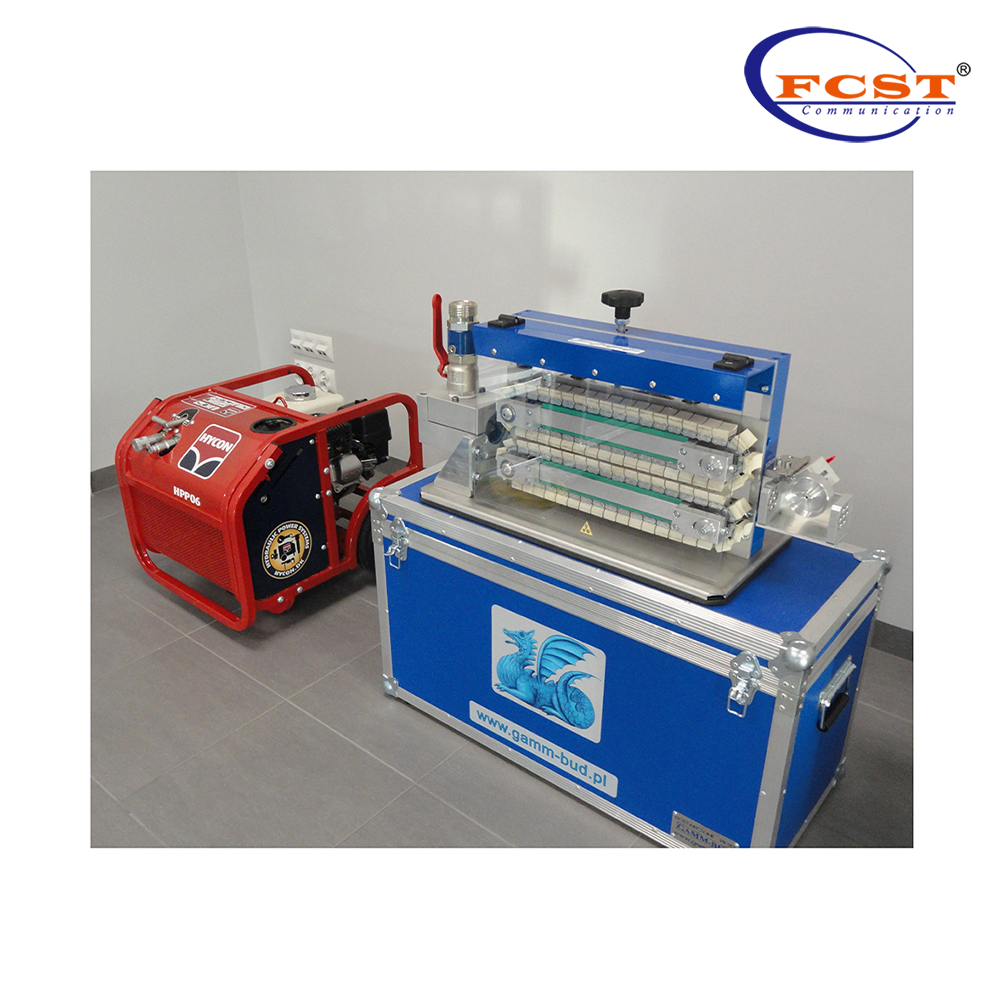

FCST-FBM08 Optical Cable Blowing Machine is the most powerful machine for blowing micro duct packages.The unit is equipped with hydraulic motors and roller chain drive feeder. Paired up and delivered with hydraulic power unit.Recommended for heavier works requiring bigger pushing forces. It has a solid aluminum construction, high quality feeder and powerful hydraulic motors that allow blowing ducts within machine’s range up to a distance of 1.5 km.
Product Overview
FCST-FBM08 Optical Cable Blowing Machine is the most powerful machine for blowing micro duct packages.The unit is equipped with hydraulic motors and roller chain drive feeder. Paired up and delivered with hydraulic power unit.Recommended for heavier works requiring bigger pushing forces. It has a solid aluminum construction, high quality feeder and powerful hydraulic motors that allow blowing ducts within machine’s range up to a distance of 1.5 km.
Product Specifications
Construction | Description |
Micro Duct Packages Diameter | 3-5 pcs x Φ 10 mm (Optional) 3-5 pcs x Φ 12 mm (Optional) 7 pcs x Φ 10 mm (Optional) 7 pcs x Φ 12 mm (Optional) |
Duct Diameter | Φ 32, 40, 50 mm |
Blowing Distance / Max | 1500m |
Blowing Speed / Max | 80 m/min |
Work Pressure / Max | 10 bar |
Dimensions of The Unit(L*W*H) | 850*400*300mm (33.465"x15.748"x11.811") weight approx 42kg |
Dimensions of The Transport Box | 920*530*440mm (weight approx 55kg) |
Available Accessories | air hose socket wrench set of Allen keys set of cable seals hydraulic power unit set of seals for HDPE ducts set of handles for HDPE ducts |
Required Compressor's Efficiency | micro ducts 32-40-50 mm:8-10mᶾ/min |
Hydraulic Power Unit | weight: 54 kg max hydraulic pressure: 110 bar dimensions: 630 x 530 x 510 mm |
Warranty Period | 36 Months Warranty |
Product Specifications
Construction | Description |
Micro Duct Packages Diameter | 3-5 pcs x Φ 10 mm (Optional) 3-5 pcs x Φ 12 mm (Optional) 7 pcs x Φ 10 mm (Optional) 7 pcs x Φ 12 mm (Optional) |
Duct Diameter | Φ 32, 40, 50 mm |
Blowing Distance / Max | 1500m |
Blowing Speed / Max | 80 m/min |
Work Pressure / Max | 10 bar |
Dimensions of The Unit(L*W*H) | 850*400*300mm (33.465"x15.748"x11.811") weight approx 42kg |
Dimensions of The Transport Box | 920*530*440mm (weight approx 55kg) |
Available Accessories | air hose socket wrench set of Allen keys set of cable seals hydraulic power unit set of seals for HDPE ducts set of handles for HDPE ducts |
Required Compressor's Efficiency | micro ducts 32-40-50 mm:8-10mᶾ/min |
Hydraulic Power Unit | weight: 54 kg max hydraulic pressure: 110 bar dimensions: 630 x 530 x 510 mm |
Warranty Period | 36 Months Warranty |
