FCST-FBM01 Easy Set
FCST
Availability: | |
---|---|
Product Overview

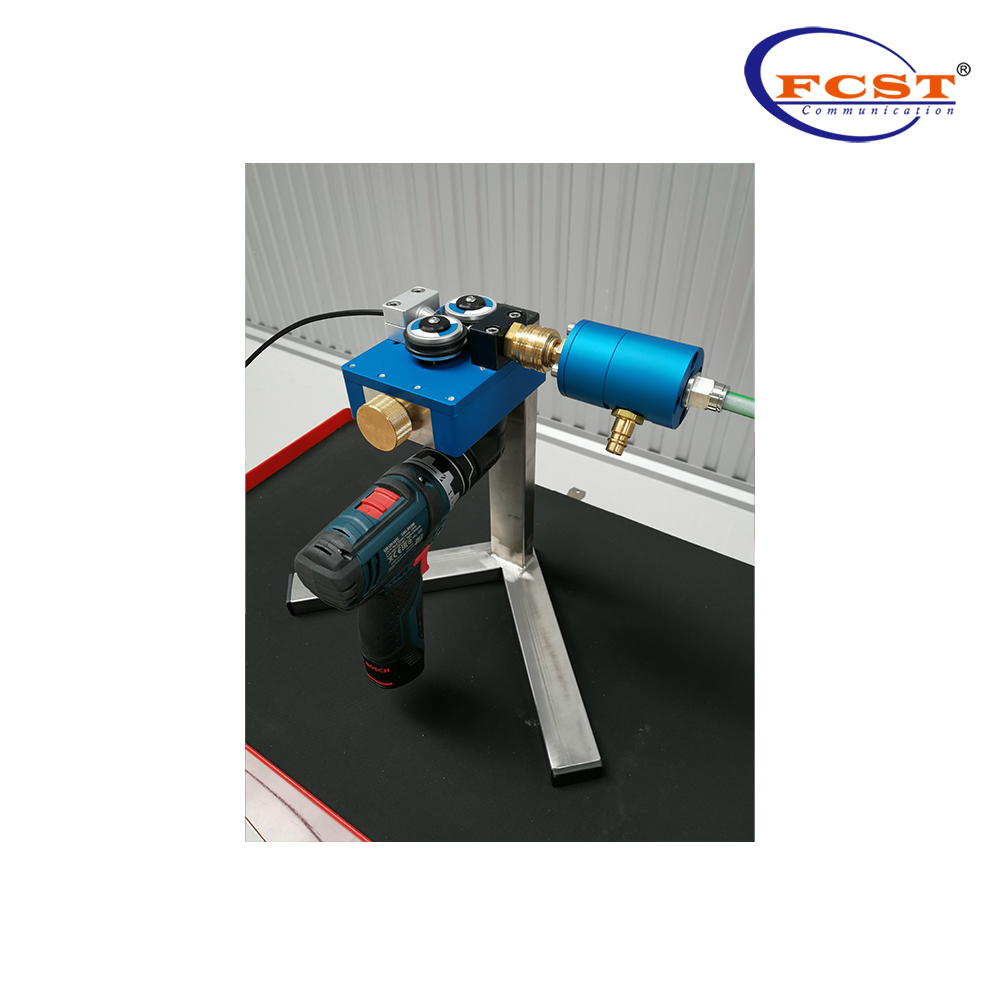

FCST-FBM01 Easy Set Fiber Blowing Machine is paired with a dedicated drill/drive unit-spare battery included and a customized small stainless steel tripod. The blowing unit is designed to build the last sections of the FTTH network. Delivered with special bushings facilitating blowing fiber optic cables from Φ 0.5~6 mm diameter.
Product Overview
FCST-FBM01 Easy Set Fiber Blowing Machine is paired with a dedicated drill/drive unit-spare battery included and a customized small stainless steel tripod. The blowing unit is designed to build the last sections of the FTTH network. Delivered with special bushings facilitating blowing fiber optic cables from Φ 0.5~6 mm diameter.
Product Specifications
Construction | Description |
Micro Cable Diameter | Φ 0.5~6 mm |
Micro Tube Diameter | Φ 5,7,10,12,14,16 mm |
Blowing Distance / Max | 700m |
Blowing Speed / Max | 60 m/min |
Work Pressure / Max | 15 bar |
Dimensions of The Unit(L*W*H) | 260*100*140mm (10.236"x3.937"x5.512") weight approx 2kg |
Dimensions of The Transport Box | 465*400*155mm (weight approx 8kg) |
Available Accessories | air hose set of gaskets additional tools micro duct cutter set of bushings and micro duct connectors spare wheels with removable rubber bands |
Required Compressor's Efficiency | micro ducts up till 8mm:0.8mᶾ/min micro ducts between 8-12mm:1.0mᶾ/min micro ducts between 12-15mm:1.5mᶾ/min |
Warranty Period | 36 Months Warranty |
Product Specifications
Construction | Description |
Micro Cable Diameter | Φ 0.5~6 mm |
Micro Tube Diameter | Φ 5,7,10,12,14,16 mm |
Blowing Distance / Max | 700m |
Blowing Speed / Max | 60 m/min |
Work Pressure / Max | 15 bar |
Dimensions of The Unit(L*W*H) | 260*100*140mm (10.236"x3.937"x5.512") weight approx 2kg |
Dimensions of The Transport Box | 465*400*155mm (weight approx 8kg) |
Available Accessories | air hose set of gaskets additional tools micro duct cutter set of bushings and micro duct connectors spare wheels with removable rubber bands |
Required Compressor's Efficiency | micro ducts up till 8mm:0.8mᶾ/min micro ducts between 8-12mm:1.0mᶾ/min micro ducts between 12-15mm:1.5mᶾ/min |
Warranty Period | 36 Months Warranty |
Accessories Included Inside The Set
Construction Suggestions (Optional)
1.Cable Guiding Heads (Optional)
2.Air Compressor (Optional)
Compressor for blowing machines. Necessary for proper operation. It gives you the opportunity to achieve the maximum blowing range.
3.Cable Blowing Lubricant (Optional)
Micro Cable Blowing Lubricant reduces friction when blowing micro cables into micro-tubes. Increases the blowing range.Capacity 350ml、1000ml、25L、5gal.
Accessories Included Inside The Set
Construction Suggestions (Optional)
1.Cable Guiding Heads (Optional)
2.Air Compressor (Optional)
Compressor for blowing machines. Necessary for proper operation. It gives you the opportunity to achieve the maximum blowing range.
3.Cable Blowing Lubricant (Optional)
Micro Cable Blowing Lubricant reduces friction when blowing micro cables into micro-tubes. Increases the blowing range.Capacity 350ml、1000ml、25L、5gal.
